Wireline Cabin Truck
Truck-mounted wireline cabin unit for field operations.
Equipment, tools and line.
Surface equipment, slickline tools, and line on reels. Everything is built or supplied to order and confirmed with RDU.
01 / Surface equipment
Surface equipment
Complete units and the packages that power and support them in the field.

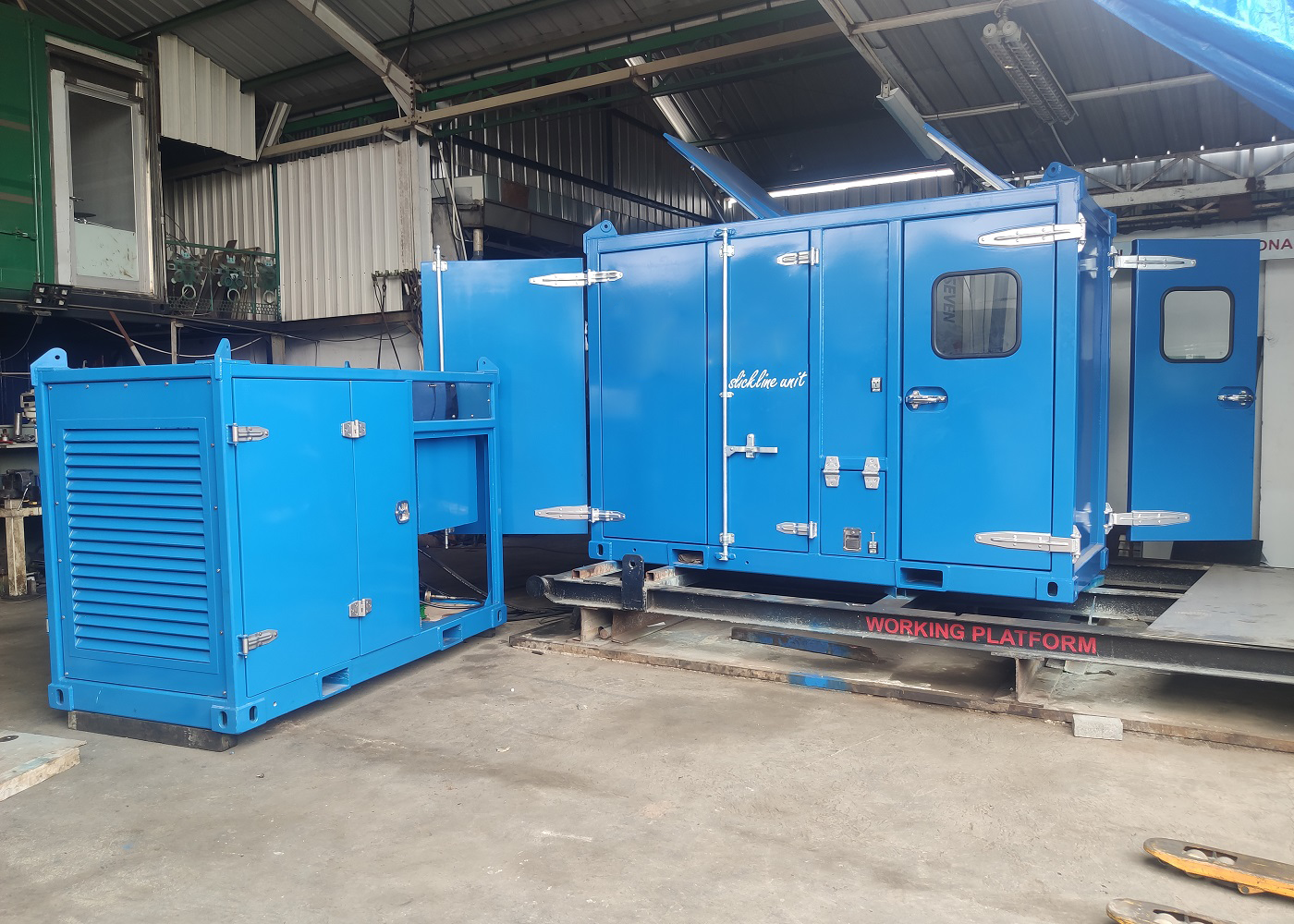

Zone 2 Slickline Unit
Double-drum cabin slickline unit configured with a Pyroban system.

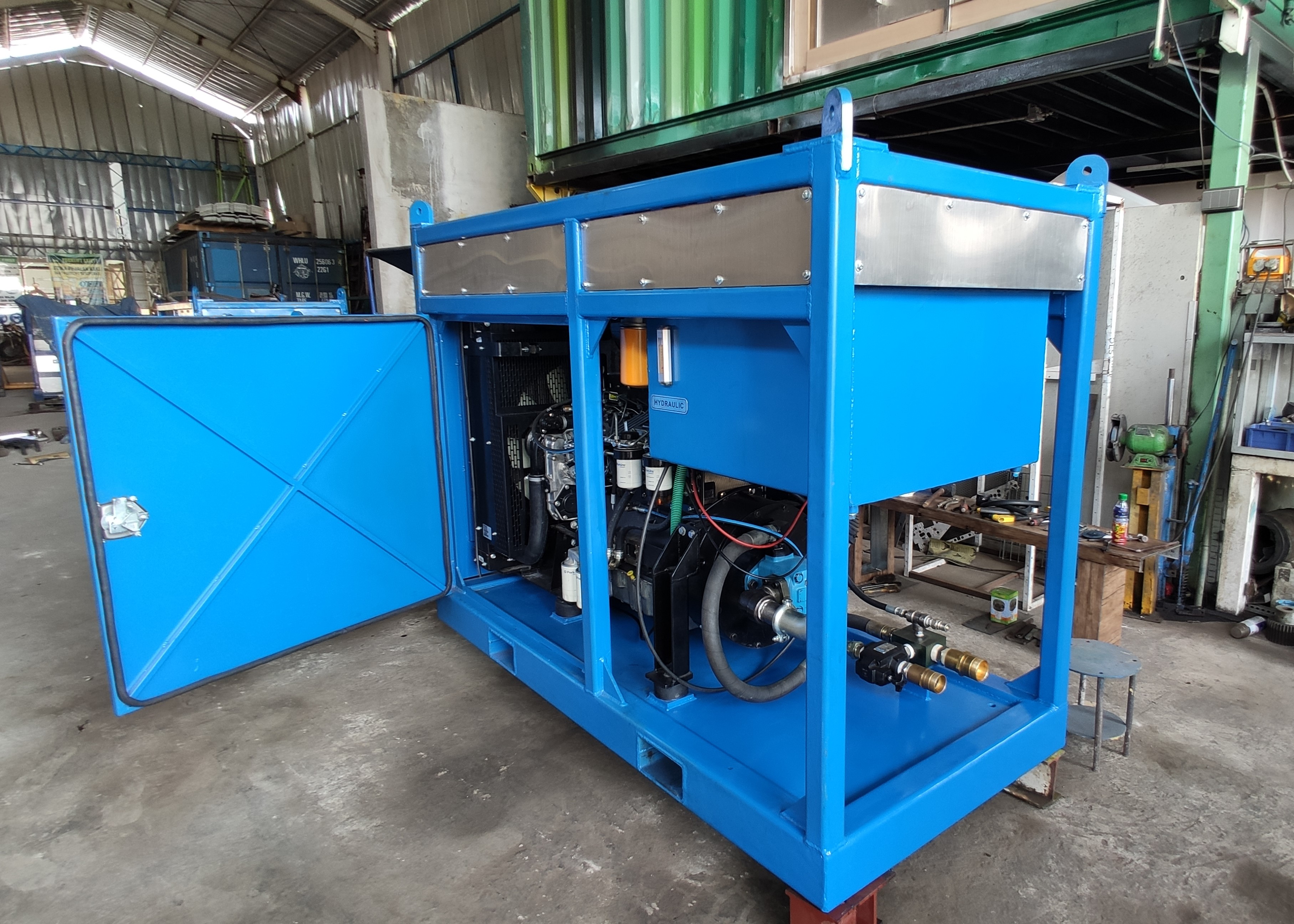

Power Pack
Diesel-driven hydraulic power package with multiple engine and starter options.

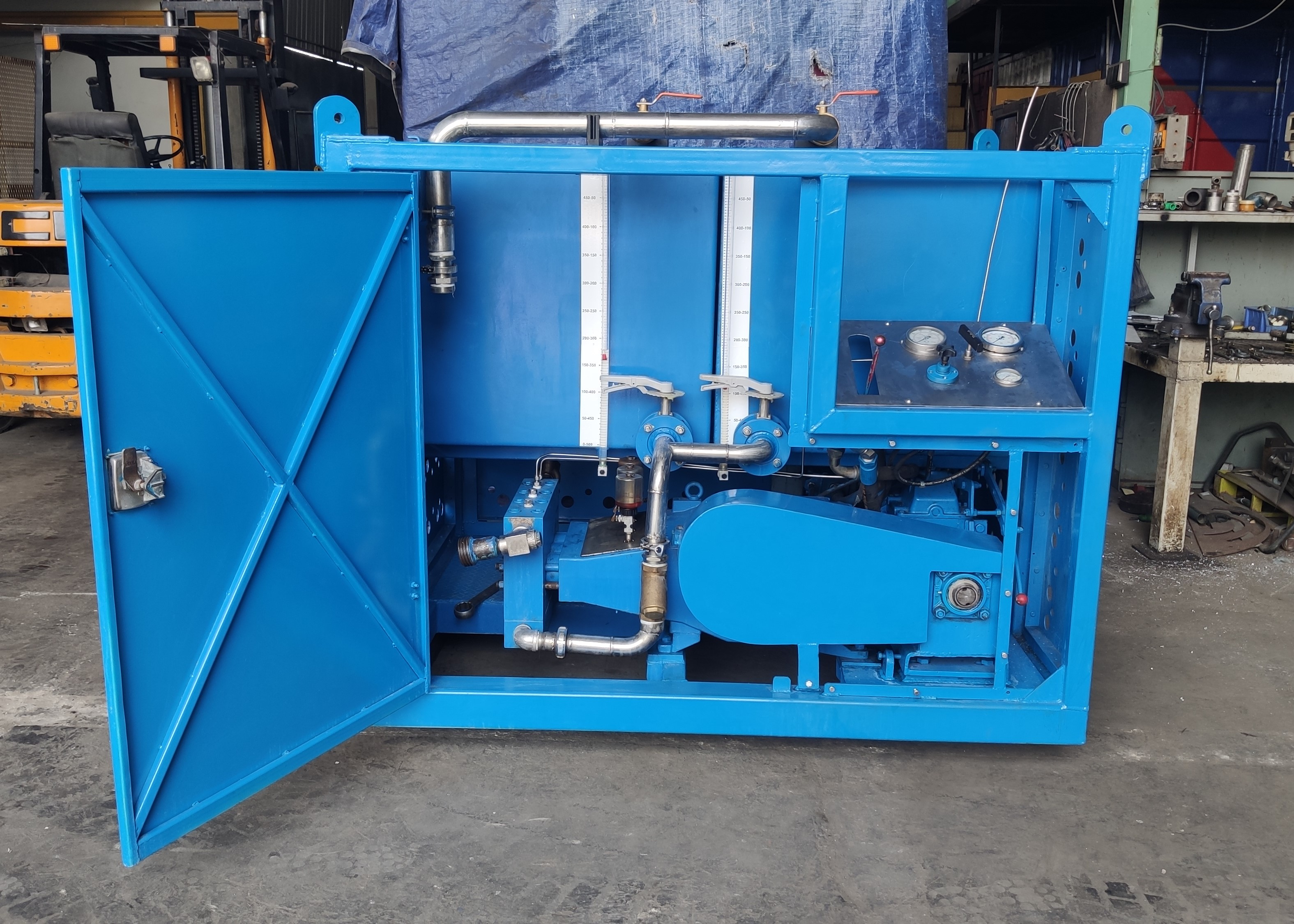

Triplex Pump
Compact high-pressure pump package for wireline and pressure-support work.

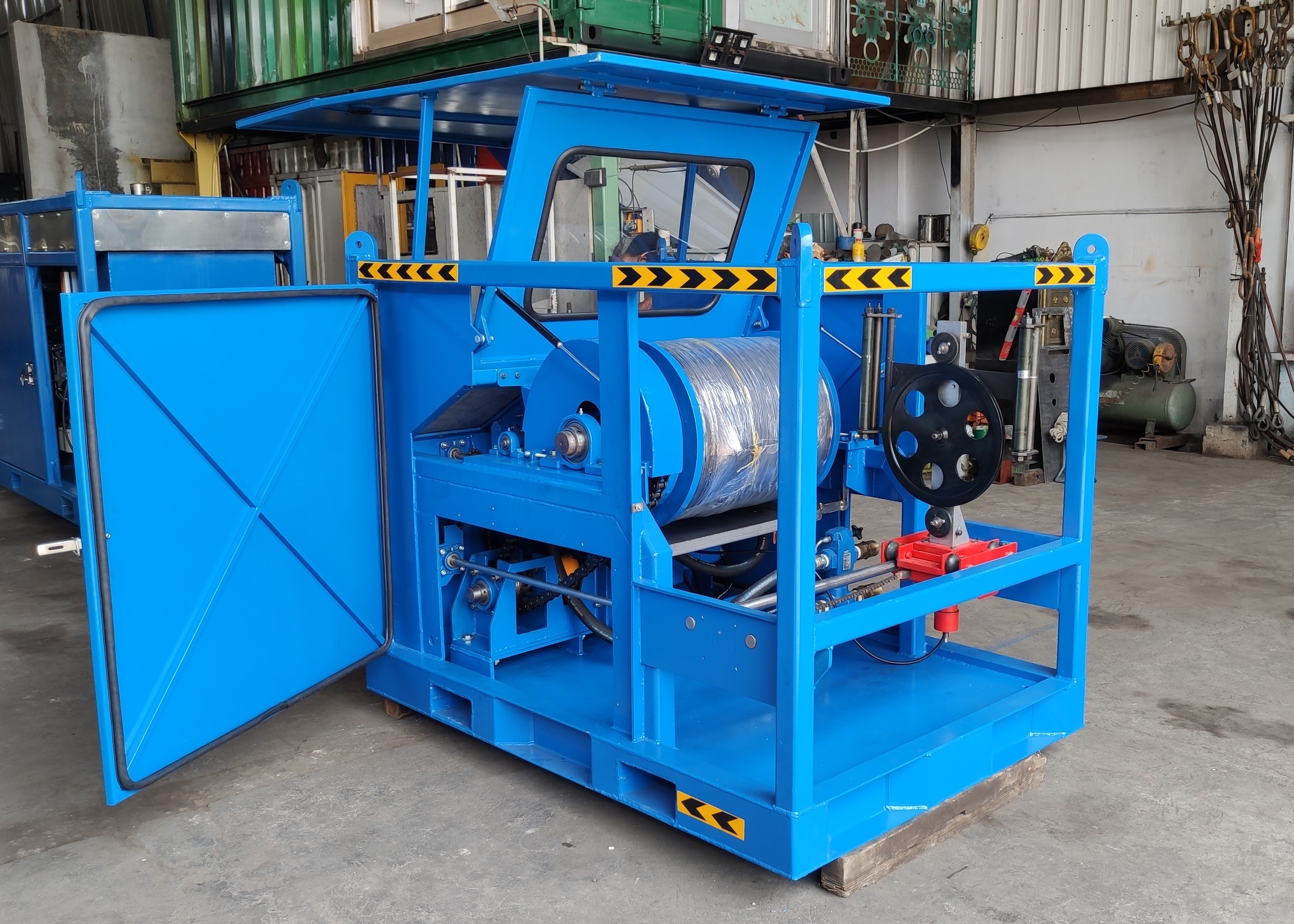

Winch Unit
Enclosed wireline winch package with drum performance configured to order.

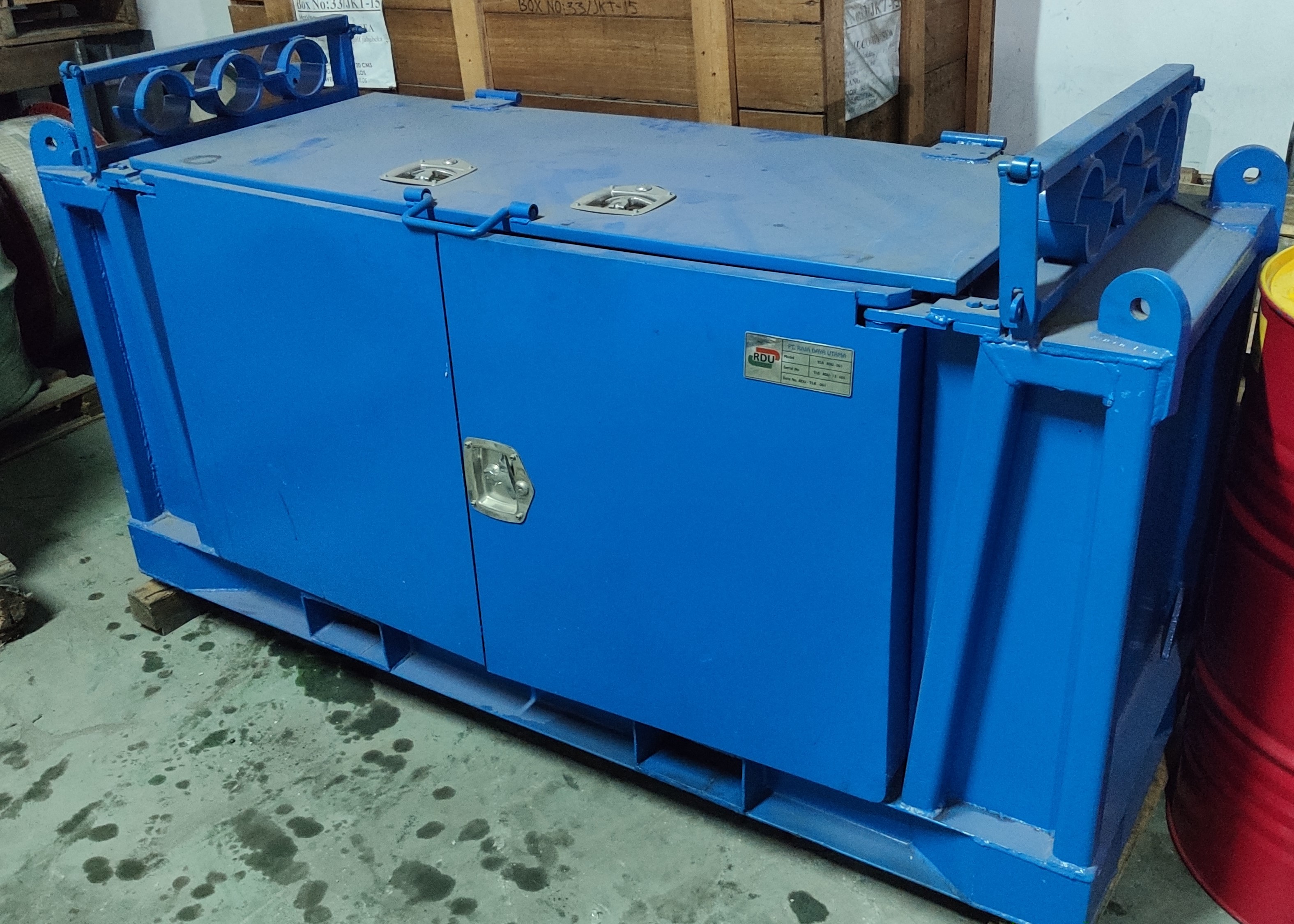

Toolbox
Transportable enclosed toolbox for organized field equipment storage.
02 / Slickline tools
Slickline tools
Explore the purpose of each tool. Tool selection and configuration are discussed directly with RDU for your operation.
01Anti Blow-Up ToolHelps limit unintended upward movement of a slickline toolstring.
Ask about the Anti Blow-Up ToolWhat it does
An Anti Blow-Up Tool is used in a slickline assembly to help restrain unintended upward movement associated with pressure from below. Its suitability depends on the toolstring and well conditions.
02Blind BlockImpact tool for addressing downhole obstructions.
Ask about the Blind BlockWhat it does
A Blind Block is a solid tool used to apply impact to downhole obstructions during slickline work. The tool is selected to suit the obstruction and the planned intervention.
03Centre SpearFishing tool for engaging tangled wire downhole.
Ask about the Centre SpearWhat it does
A Centre Spear is used in wire fishing operations to engage tangled wire for recovery. The fishing approach depends on the condition and position of the wire in the well.
04Cross Over SubAdapter joining different toolstring connections.
Ask about the Cross Over SubWhat it does
A Cross Over Sub connects toolstring components with different connection arrangements. The required interfaces are agreed for the tools that will be used together.
05Gauge CutterTool for checking tubing clearance and removing light deposits.
Ask about the Gauge CutterWhat it does
A Gauge Cutter is run to check tubing clearance ahead of other downhole tools. It can also help scrape wax and light deposits from the tubing wall.
06Lead Impression BlockImpression tool for investigating downhole obstructions.
Ask about the Lead Impression BlockWhat it does
A Lead Impression Block records an impression of the top of a downhole obstruction. The recovered impression helps the operator assess the obstruction before selecting a fishing approach.
07Roller StemWeight bar with rolling contact to help reduce toolstring drag.
Ask about the Roller StemWhat it does
A Roller Stem adds weight to the toolstring while rollers help reduce sliding friction against the tubing. It is used where toolstring movement is affected by well deviation or drag.
08Sand Pump BailerBailer for collecting sand and loose debris from tubing.
Ask about the Sand Pump BailerWhat it does
A Sand Pump Bailer uses a pumping action to draw sand and loose debris into a collection barrel. It supports tubing cleanout before further downhole work.
09Shear Type Releasable Rope SocketRope socket with a planned release function for the toolstring.
Ask about the Shear Type Releasable Rope SocketWhat it does
A Shear Type Releasable Rope Socket connects the wire to the toolstring and provides a release function for planned recovery operations. The release arrangement must be agreed for the intended assembly and operation.
10Shock AbsorberTool that helps reduce impact transmitted to downhole instruments.
Ask about the Shock AbsorberWhat it does
A Shock Absorber cushions impacts transmitted through the toolstring. It is used to help protect sensitive downhole instruments during intervention work.
11Slickline Well Roller BoogieRolling support to help reduce drag in deviated wells.
Ask about the Slickline Well Roller BoogieWhat it does
A Slickline Well Roller Boogie provides rolling contact between the toolstring and tubing. It helps support toolstring movement where well deviation increases drag.
12Stem / Weight BarWeight bar providing toolstring ballast and jarring momentum.
Ask about the Stem / Weight BarWhat it does
A Stem or Weight Bar adds mass to a slickline toolstring to assist its descent and provide momentum for jarring operations. The required weight depends on the assembly and well conditions.
13Swivel JointRotating joint that helps limit torque transfer to the wire.
Ask about the Swivel JointWhat it does
A Swivel Joint allows relative rotation within the toolstring. It helps reduce the transfer of rotational movement from downhole tools to the wire.
14Tubing BroachTool for working through deposits and tubing restrictions.
Ask about the Tubing BroachWhat it does
A Tubing Broach is used to work through deposits or restrictions inside tubing. The tool profile is selected according to the restriction and the planned intervention.
15Tubing SwedgeForming tool for addressing localized tubing deformation.
Ask about the Tubing SwedgeWhat it does
A Tubing Swedge is used to help restore a passable internal profile where tubing has localized deformation. Suitability depends on the condition of the tubing and the intervention plan.
16Wire FinderTool for preparing a loose wire end for fishing.
Ask about the Wire FinderWhat it does
A Wire Finder is used to locate and prepare the upper end of loose wire downhole so that a fishing tool can engage it. It supports the preparation stage of wire recovery operations.
RDU can also manufacture tools beyond those listed here. Contact us to discuss other tool types, custom designs, and your operational requirements.
03 / Line supply
Proud Distributor & Stockist
Slickline and braided line from established manufacturers, supported by RDU.
Slickline
Zapp Precision slickline in six diameters and multiple corrosion-resistant grades.
Zapp Precision SlicklineUSA / Sweden
SS 316, 2205, 2507 EHS, 26Mo & 27-07Mo
Available diameters
- 0.092″
- 0.105″
- 0.108″
- 0.125″
- 0.140″
- 0.160″
Braided Line
Webster & Horsfall carbon steel braided line in EIPS and UHT grades.
Webster & Horsfall LtdUK
High-quality carbon steel braided line in EIPS and UHT grades
Available diameters
- 3/16″
- 7/32″
- 1/4″
- 5/16″
Contact RDU to confirm the required grade, diameter, reel length, and current availability.
Final configurations and specifications must be confirmed with RDU.
Tell us the job.
We’ll build to it.
Every RDU unit is configured to order. Send your requirements and our team will confirm options and specifications. Monday – Friday, 08:00 – 17:00 WIB.
